Control Spray Xtra Duty Product Support

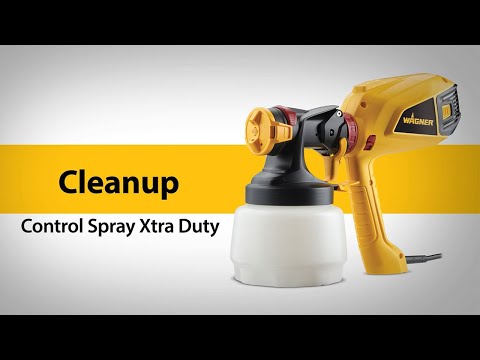

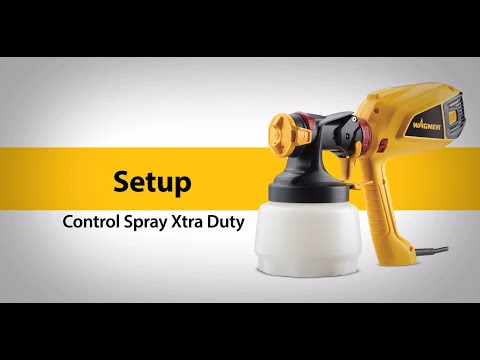

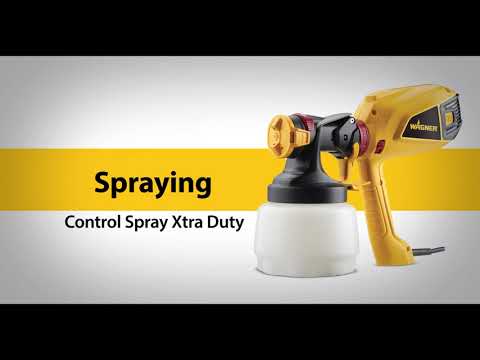

How-To Videos
Displaying slide
of 4 Troubleshooting Videos
Charts & Guides
Material Compatibility
These materials are best suited for the Control Spray Xtra Duty
MATERIAL | COMPATIBILITY |
---|---|
Wood Stain | Ideal Performance |
Semi-Transparent Stain | Ideal Performance |
Solid Stain | Ideal Performance |
Paint & Primer | Not Recommended |
Spray Technique
Air Cap Position for Spray Patterns
Adjust the position of the air cap on the nozzle to change the spray pattern to your desired position
Horizontal Spray Pattern
![W QX5 iSpray Nozzle Fan Pattern Horz](https://www.wagnerspraytech.com/wp-content/uploads/2023/11/W_QX5-iSpray-Nozzle_Fan-Pattern_Horz.jpg)
Vertical Spray Pattern
![W QX5 iSpray Nozzle Fan Pattern Vert](https://www.wagnerspraytech.com/wp-content/uploads/2023/11/W_QX5-iSpray-Nozzle_Fan-Pattern_Vert.jpg)
Spraying Techniques
Distance From Surface
Position spray gun perpendicular to and 6-8″ from the surface
![Spray technique 2500](https://www.wagnerspraytech.com/wp-content/uploads/2023/09/Spray_technique_2500.jpg)
Overlap Each Pass
When spraying large surfaces, overlap each pass by at least 50%.
![Overlap](https://www.wagnerspraytech.com/wp-content/uploads/2023/09/Overlap.jpg)
Correct Spray Technique
Spray with smooth passes at a consistent speed. Do not flex wrist when spraying
![Parallel](https://www.wagnerspraytech.com/wp-content/uploads/2023/09/Parallel.jpg)
Spray Pattern Guide
Here are some ways to troubleshoot any issues with your spray pattern if they come up
SPRAY PATTERN | IMAGE | SOLUTIONS | |||
---|---|---|---|---|---|
Clumpy Finish | ![]() | Too little air and too much material. Turn up the air flow and turn down the material flow. | NOTE: This sprayer is not designed to spray thick materials. | ||
Runs & Sags | ![]() | Too much air and too much material. Turn down the air flow and the material flow. | Spray gun is too close to the surface. Take a step back and hold it 6-8″ away. | Moving too slow. Move faster while remaining steady. | |
Poor Coverage | ![]() | Too little air and too little material. Turn up the air flow and turn up the material flow. | Spray gun is too far from the surface. Take a step closer and hold it 6-8″ away. | Moving too fast. Move slower while remaining steady. | If adjusting the settings does not work, try adding Wagner Paint Easy to latex paint to condition it. |
Good Spray Pattern | ![]() | Settings are adjusted properly, sprayer is 6-8″ away from the surface and is moving at a steady speed. |
