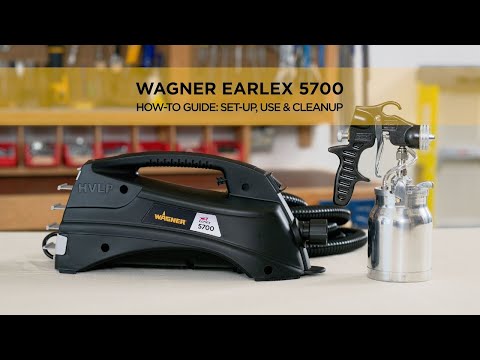

How-To Videos
Displaying slide of 1
Troubleshooting Videos
Charts & Guides
Material Compatibility
These materials are best suited for the Earlex 5700
| Material | COMPATIBILITY |
|---|---|
| Urethanes | Ideal Performance |
| Varnishes | Ideal Performance |
| Stains | Ideal Performance |
| Sealers | Ideal Performance |
| Enamels | Ideal Performance |
| Glazes | Ideal Performance |
| Water-based lacquer | Ideal Performance |
| Latex paint | Ideal Performance* |
Tip & Needle Chart
| NEEDLE SIZE | MATERIAL | PROJECT | ATOMIZATION |
|---|---|---|---|
| 1.0mm | Lacquers, Stains, Polyurethane, Thinners, Dyes | Musical instruments, cabinetry, and other high gloss finishes | Very, very fine atomization for high gloss finishes |
| 1.5mm | Lacquer, Stains, Polyurethane, Varnish, Shellac, Oil Paint, Thinned Latex Paint | Cabinetry, furniture, trim, etc. | Fine atomization for finishing of furniture and cabinetry |
| 2.0mm | Latex Paint, Primers, Enamels, Epoxy, Adhesives, Solid Color Stains | Walls, fences, decks, outdoor furniture, etc. | Coarse atomization may leave a texture |
| 2.5mm | Latex Paint, Primers, Enamels, Epoxy, Adhesives, Solid Color Stains | Walls, fences, decks, barns, etc. | Very coarse atomization will leave a roller-like texture |
Spray Technique
Air Cap Position for Spray Patterns
Adjust the position of the air cap on the nozzle to change the spray pattern to your desired position
Horizontal Spray Pattern
Vertical Spray Pattern
Round Spray Pattern
Spraying Techniques
Distance From Surface
Position spray gun perpendicular to and 6-8″ from the surface
Overlap Each Pass
When spraying large surfaces, overlap each pass by at least 50%.
Correct Spray Technique
Spray with smooth passes at a consistent speed. Do not flex wrist when spraying
